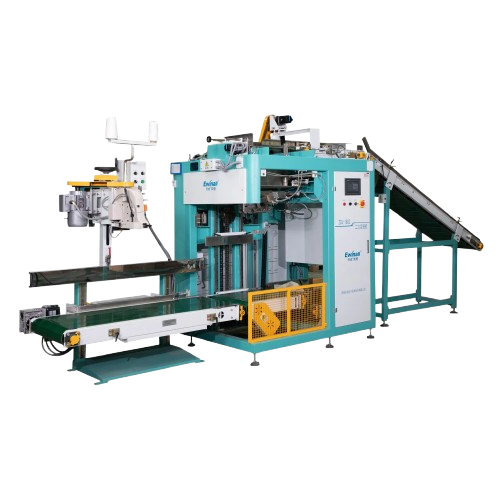

ZDJ-1800-I Secondary Bagging Machine
The ZDJ-1800-I Secondary Bagging Machine is a semi-automatic solution designed for integration into automated packaging and palletizing lines. It efficiently performs secondary bagging for double-sided packaged products such as rice and flour. Featuring a drop-type bagging method and adjustable handwheel system, the machine enables flexible switching between 5–10 kg formats. Its pre-storage bagging design enhances throughput while maintaining bag integrity.
Production Capacity: Up to 1800 bags/hour
Packaging Weight: 5–10 kg (inner bags), ≤25 kg conveying
Supported Industries: Grains & Cereals, Food Powders & Granules, Sugar, Salt & Food Ingredients, Beans & Seeds
Key features
High-Speed Bagging Efficiency
Pre-storage station design allows multiple bags to be prepared in advance, significantly reducing idle time and increasing throughput.
High-Speed Performance
Adjustable handwheel enables quick switching between 5–10 kg bag configurations, supporting flexible production needs.
Flexible Format Adjustment
Drop-type method minimizes bag deformation by reducing falling distance, ensuring consistent and high-quality bag appearance.
Servo-Driven Conveying System
Servo motor integration ensures fast, stable, and low-noise operation for precise bag handling.
Intelligent HMI Control
Equipped with a touch screen and fault self-diagnosis system, enabling easy operation, maintenance, and quick troubleshooting.
Wide Application Compatibility
Designed to handle various double-sided packaging products such as rice and flour across multiple packaging formats.
Specification
Model
ZDJ-1800-I
Production Capacity
≤1800 bags/hour (depending on configuration)
Packaging Weight
5–10 kg (inner bags), ≤25 kg conveying
Applicable Bag Type
Drop-type secondary bagging
Bag Dimensions
Inner bag: L≤500 mm, W≤300 mm; Outer bag: L≤1000 mm, W 450–720 mm
Power Supply
AC380V±10%, 50Hz, three-phase five-wire
Air Pressure
0.5–0.7 MPa
Air Consumption
50 L/min
Key Components
PLC (Omron), Touch Screen (MCGS), Electrical (Eaton), Sensors (Sick), Servo Motor (Inovance), Cylinder (SMC/AirTAC), Bearings (NSK)
